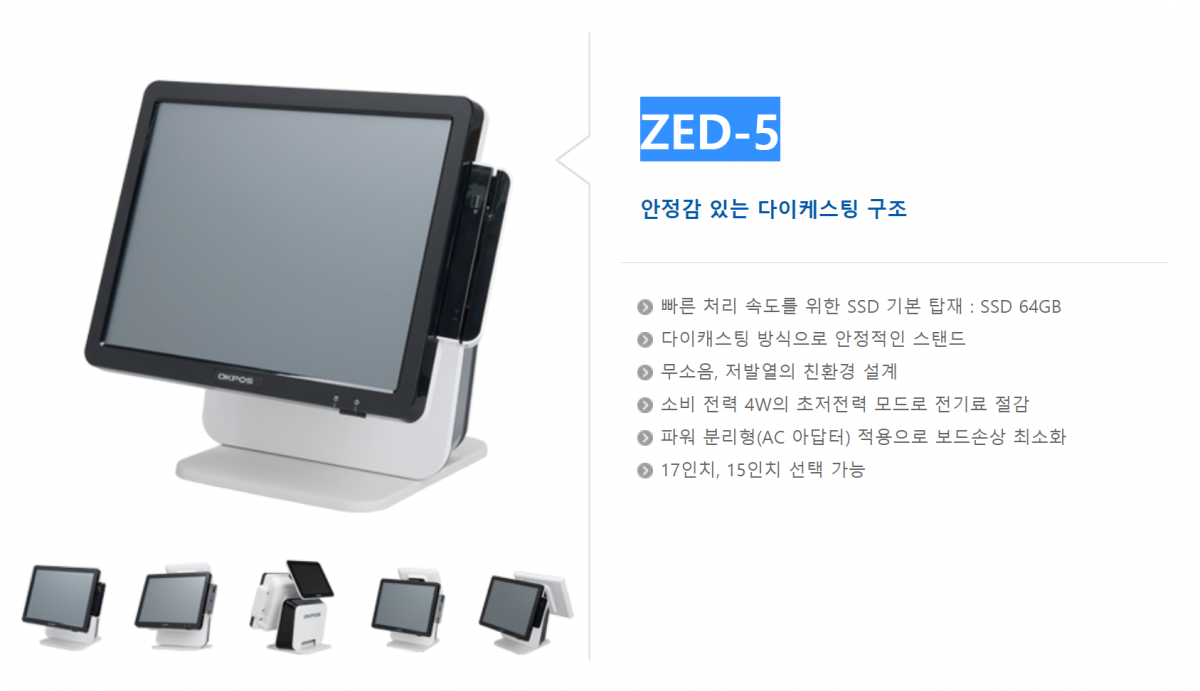

ZED-5
페이지 정보
작성자최고관리자 댓글 0건 조회 1,057회 작성일 21-06-15 11:46본문
| Item | Specification |
|---|---|
| CPU | Intel® Celeron® Processor J1900 |
| Cache | 2M Cache, up to 2.42 GHz |
| Memory | DDR3L 1333MHz SO-DIMMx1, Up to 8GB |
| Storage | 2.5” SDD 64GB or 128GB or 256GB |
| LAN | Realtek RTL 8111H 10/100/1000 Mb/s auto negotiation, RJ45 Connectorx1 |
| Display | 15inch TFT Liquid Crystal Display / 1024x768 / 4:3 |
| Processor Graphics | Intel® HD Graphics for Intel Atom®Processor Z3700 Series |
| Touch | 15ich Resistive Touch Screen |
| IC Reader | Option |
| USB | 1x USB 3.0 Port on Rear I/O 3x USB 2.0 Port on Rear I/O 2x USB 2.0 Dual stack connectors |
| Sound Codec | Realtek Codec ALC662, supports Line-out |
| Back Panel I/O | 1x DC-12V 4-pin Power Input Connector 1x DC-12V 2-pin Power Output Jack 1x VGA Port 1x PS/2 Keyboard/ Mouse Connector 1x RJ-45 Port 3x COM Port 1x Audio Jack (Line-out) |
| Speaker | 1x 4*1 pins, Speaker out,3W * 2 channel |
| OS | Windows 10 IoT Enterprise Entry |
| Color | Black or White |
| Power | AC/DC ADAPTOR 12V 5000mA |
| Dual Display | Option1 (9.7" TFT (1024*768) LED Backlight) Option2 (15" TFT (1024*768) LED Backlight) |
